DETAILS

LOCATION

Third Floor (3F)

SIZE

7,281㎡ (with swing space) : Partitions into two sections, column free

CAPACITY

360 booths:
3m x 3m / booth or maximum 7,500 pax

BEST FOR

Exhibitions, meetings, events

FACILITIES

  • Floor finish : Color-hardened floor
  • Trench box : Water, air, electricity, drainage and communication service outlet
  • Column-free
  • Floor load : 1.5 tons/m²

OTHER

  • Organizer’s office : 1 per hall on 4th floor (126m²)
  • Multi-purpose room : 1 per hall at freight gate (32.5m²)

DIMENSIONS

Hall Dimensions Ceiling Height Usable Area Capacities
# Meters Feet Meters Feet Sq. Meters Sq. Ft T. Type C. Type B. Type
Hall D D1 36.0 × 81.0 118.1 × 265.7 17.5 57.4 2,916 31,388 3,200 1,600 1,900
D2 45.0 × 81.0 147.6 × 265.7 17.5 57.4 3,645 39,235 3,800 1,900 1,900
D1+2 81.0 × 81.0 265.7 × 265.7 17.5 57.4 6,561 70,623 7,000 3,500 4,500
Swing space 18.0 × 40.0 59.1 × 131.2 9.3 30.5 720 7,750 - - -

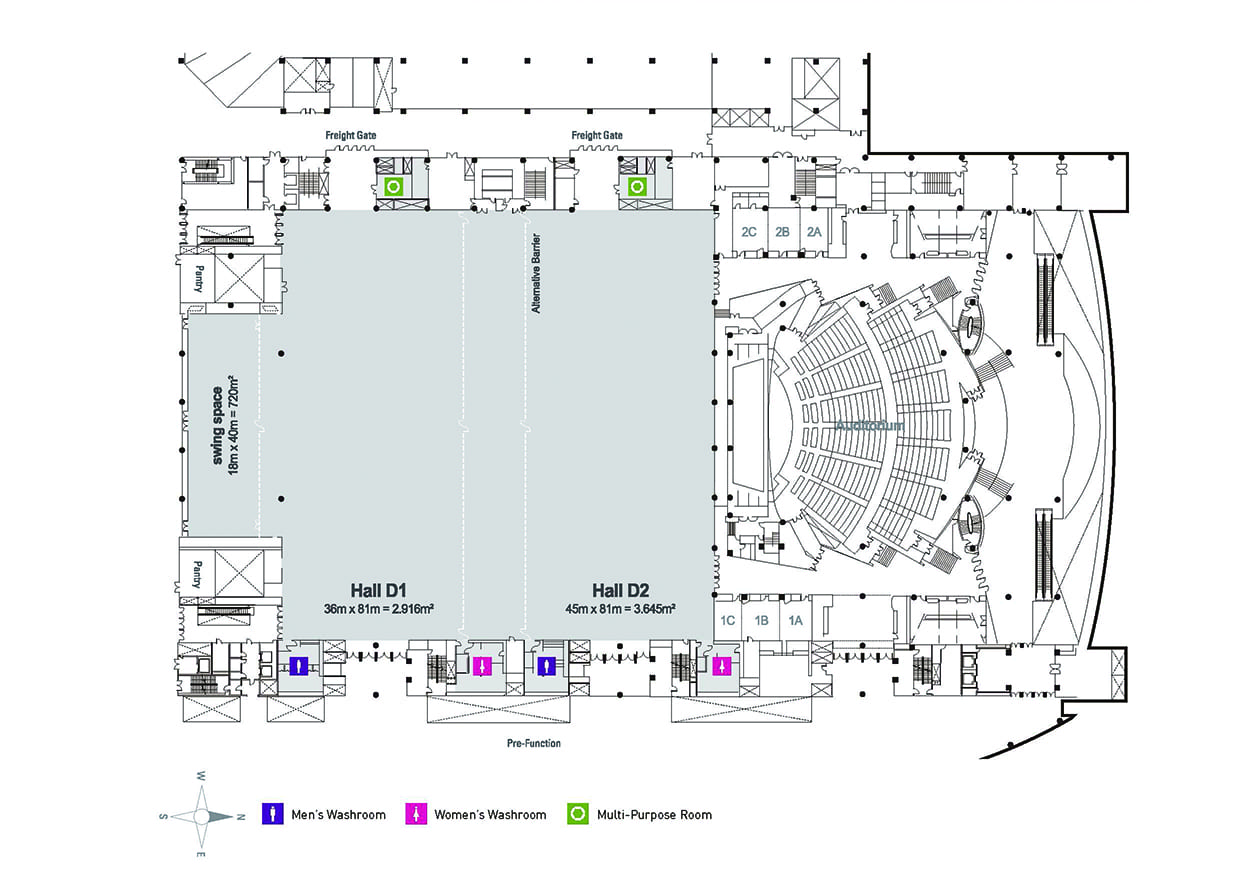

BASIC LAYOUT

Download floor plan files.
